Flanges
| Size Range | 1/2″ - 68″ |
|---|---|
| Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Dimension | ASME B16.5 & B16.47 Series A & B |
| Type | SO, WN, SW, BL, THD, LAP JOINT, ORIFICE TYPE, REDUCING FLANGES |
| Face | RF, FF, RTJ, T&G |
| Material Grade |
A105, A350 LF2 A182 F5, F9, F11, F22, F91, F92 A182 F304/L, F316/L, F321, F317/L, DUPLEX AND SUPER DUPLEX 904L, INCONEL, MONEL, HASTEALLOY, ALLOY 20 |
(We also produce flanges as per DIN / JIS / BS / GOST STD.)
Forged Fittings
| Size Range | 1/8″ to 4″ |
|---|---|
| Class | 2000# / 3000#/ 6000# / 9000# |
| Dimension | ASME B16.11 / MSS-SP-97 |
| Items | Elbows -90°/45°, Tees-Equal & Unequal/Reducing, Couplings-Half & Full, Cap, Cross, Plugs, Nipples – Hex Hd / Barrel, ‘O’ Lets- Weldolets / Sockolets / Threadolets. |
| Material Grade |
A105, A350 LF2 A182 F5, F9, F11, F22, F91, F92 A182 F304/L, F316/L, F321, F317/L, DUPLEX AND SUPER DUPLEX 904L, INCONEL, MONEL, HASTEALLOY, ALLOY 20 |

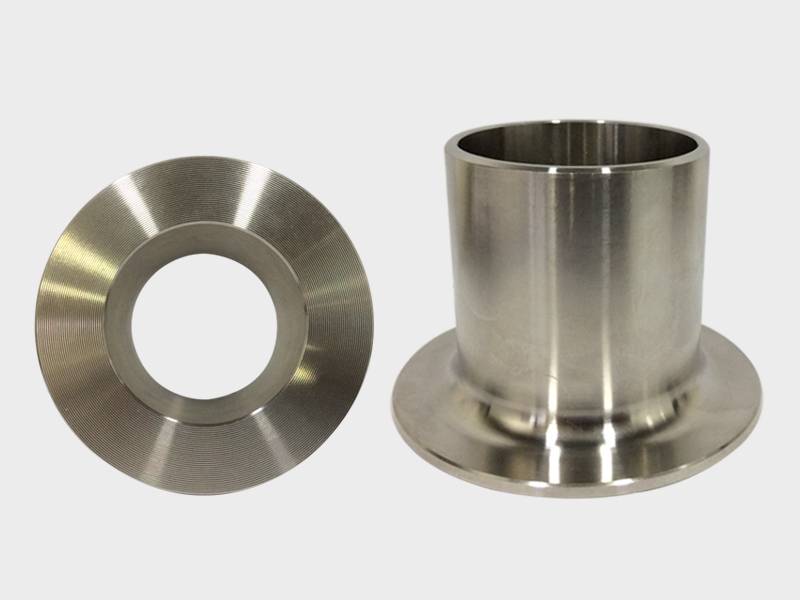

Stub Ends
| Size Range | 1/2″ - 24″ in all schedule / thickness |
|---|---|
| Type | MSS Type A / Type B / Type C |
| Dimension | ASME B16.9 / MSS-SP-43 |
| Material Grade |
A105, A350 LF2 A182 F5, F9, F11, F22, F91, F92 A182 F304/L, F316/L, F321, F317/L, DUPLEX AND SUPER DUPLEX 904L, INCONEL, MONEL, HASTEALLOY, ALLOY 20 |
| Product Specifications | Lap-Joint Stub-Ends (Seamless) (Forged) |
